CE Certificated, FDA registered

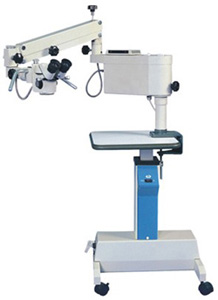

Description:
Smart and compact body allow easy mobility.
Three-step magnifications.
Spring balance system of arm ensures the microscope move freely.
All the lens are multi-coated,mildewproof and anti-reflective.
Objectives with different focus and various accessories are optional.It can be applied
in ENT,Surgery and Gynaecology.
Specification:
|
Eyepiece Magnifications |
12.5× |
|
Adjustable Diopter |
±5D |
|
Adjustable Range for Pupil Distance |
50mm～70mm |
|
Objective Lens |
f=200 |
|
Working Distance |
190mm |
|
Magnifications |
6X 10X 16X |
|
Illumination Source |
12V/100W，cold reflection halogen lamp for medical use |
|
Illumination Type |
6°cold light source coaxial illumination |
|
Coaxial Illumination |
≥10000lx |
|
Reach Radius of Arm |
860mm |
|
Adjustable Vertical Range |
850mm～1100mm |
|
Voltage |
AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz |
|
Power |
120VA |
|
Fuse |
AC250V T1.25A 、AC125V T2.5A |
|
Electrical Safety Standard |
Executive Standard:IEC601－1,Class I,Type B |
|
Packing Volume |
0.283m3，2cartons |
|
Total Gross Weight |
61kg |
|
