CE Certificated, FDA registered

Description:

Specification:

Mechanical Parameters
Phoropter arm:                 A type for Auto digital phorotper,
                                         M type for manual phoropter.
Table size:                        990mm×450mm
Table rotational angle:      90°
Table sliding movement:   330mm(without drawer)
Lifting height for chair:      150~200mm
Loading for chair:              70~150kgs

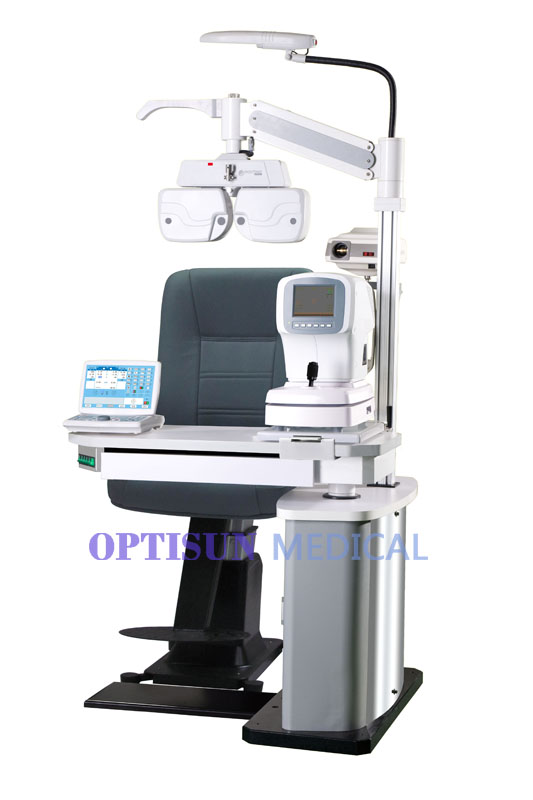

When the drawer is required as showed in picture,the table top can’t slide from left to right.
When a slit lamp need to be put on table,the drawer won’t be assembled and then the table could slide from left to right so that the patient could approach the slit lamp

Electrical Parameters
Input voltage:                110V/220V AC 50Hz~60Hz
Engine power:              55W 24V DC
Light luminaire:             16W 110V/220V AV
Fuse:                             5A 250V AC
Power without load:      1W
Pressure test:                2KV
Main wire:                      10A 250V
Working mode:               S1
Working temperature:    －30º~＋50º
Relative humidity:           less than 90%
Force of pressing key:   1~5N
Cooling mode:                Nature cooling
