CE Certificated, FDA registered

FEATURES:
1. Adjustable 7" LCD display screen
Tilt color screen provides you with clear view from any position such as sitting and standing;

2. Sensitive touch LCD display screen
You just touch the screen to finish your measurement, the operation could be easier and more convenient;

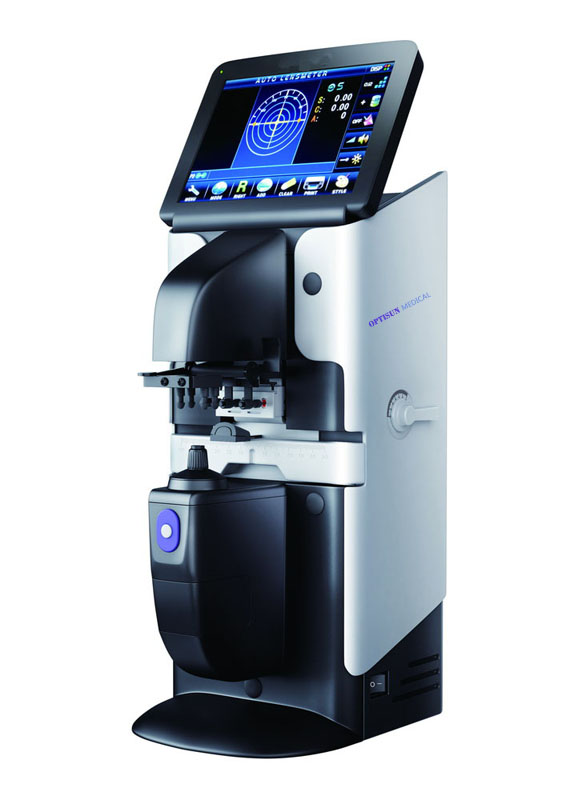

This new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

3. Measurement screen
Easy to use with recognizable icons;
It provides a user-friendly graphical interface for an immediate understanding;

4. Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision;

5. Automatic recognition of single and progressive lens

6. Bulit-in UV tester with Hi-speed UV measurement
Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar;

7. Built-in thermal printer
Quick data print with bulit-in printer. Easy to reload printer paper.

Speficication:
  Measure scope
Sphere                 0~±25D   0.01/0.12/0.25D steps
Cylinder               0~±9.99D  0.01/0.12/0.25D  steps
Axis                      0°~180°  (1°step)
ADD                     0~+9.99D   0.01/0.12/0.25D steps
prism                    0~15△    0.01/0.12/0.25△ steps
  mode
cylinder                 +,+/-,-
prism                     X-Y,P-B
Contact lens          Soft/hard
Measuring mode:  Single/progressive/ automatic recognition
  Others
Diameter of lens   ￠20~108mm
PD：                     45~90mm, 0.25mm steps
Speed                   0.1S
ABBE                   30~60
Display                 7" TFT LCD
Printer                  Thermal print
Dimensions          222(D)*161(W)*372(H)mm
Package               515(H)*320(W)*360(D)mm
Weight                 ~5KG(NET)
Power supply      100~240V 50/60HZ
