CE Certificated, FDA registered

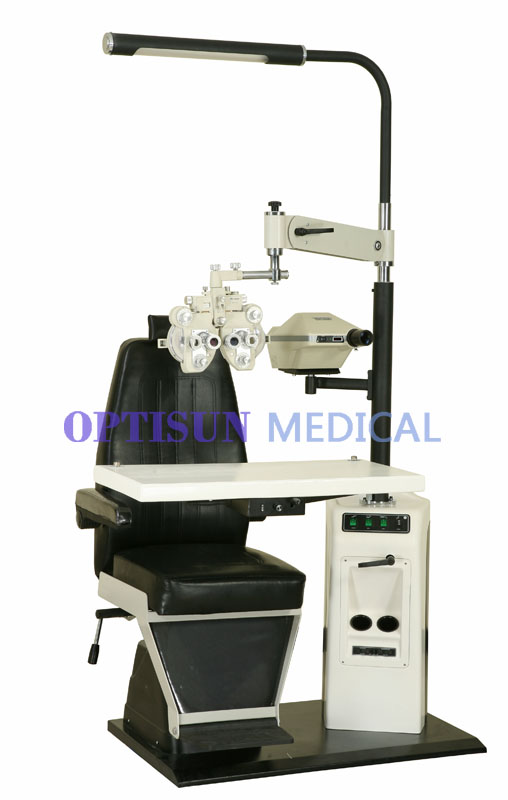

Description:

--Adopts Europe style in appearance designing, simple structure, good performance, and easy operation.
--Hand-operated phoropter arm can swing up and down, left and right to its best position, which shows the human-oriented design of it.
--Worktable provides with 90 degrees’ rotation.
--Sliding table to accommodate two instruments.
--Table instrument voltage selectable, 3V, 6V, 9V, 12V, and 24V (50W)
--Auxiliary 110V/220V output under table
--Overhead light and table voltages are variably controlled via dimmer switch
--The comfortable chair can smoothly lift up and down with low noise and able to bear big force.
--Choosing suitable styles according to your room

Specification:

Mechanical Parameters
Up/Down angle of swing arm: ±30°
Table size: 840mm×405mm
Table rotational angle: 90°
Table sliding movement: 330mm
Angle of rotation for chair: ±60°
Lifting height for chair: 150~200mm
Loading for chair: 70 ~150kgs（electric）；70 ~200kgs（hydraulic）
Lifting height for pillow: ＋150mm
Backrest obliquity: 90°~135°or 140°

Electrical Parameters
Input voltage: 110V/220V AC 50Hz~60Hz
Engine power: 55W 24V DC（electric）；160W 220V/110V AC（hydraulic）
Light luminaire: 16W 110V/220V AV
Fuse: 5A 250V AC
Power without load: 1W
Pressure test: 2KV
Main wire: 10A 250V
Working mode: S1
Working temperature: －30º~＋50º
Relative humidity: less than 90%
Force of pressing key: 1~5N
Cooling mode: Nature cooling

Installation Dimension
Figure size: 1400mm×1000mm×1990mm
Weight: 175kgs
