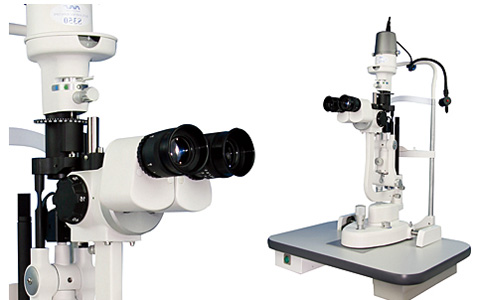

Microscope type:

Galilean system

Magnification changer:

5 steps Revolving Drum

Total magnification:

6X,10X,16X,25X,40X

Eyepieces:

12.5X

Ocular Field:

Ø18mm

Inter pupillary distance:

52mm～78mm

Diopter adjustment:

+6D to -6D

Object image field in mm:

Ø34.7(6X ),Ø22(10X ), Ø13.5(16X),Ø8.5(25X),Ø5.5(40X )

Slit illumination

Slit image width:

0～14mm continuous

Slit image length:

1～14mm continuous

Light source:

6v/20w halogen incandescent light bulb or 12V/10W LED light bulb

Slit image radial range:

0～180°

Filters:

Heat aborption,redfree(green),cobalt blue

Illumination fields Ø in mm:

0.2/1/2/3/5/10/14/1~14mm continuous

Illumination intensity:

≥50KLX

Instument base

Operation:

Single handed 3-dimensional operation of the joystick

Range of adjustment:

90mm(longitudinal),100mm(lateral),30mm(vertical),15(fine)

Chin-rest

Fixation:

Red led

Vertical adjustment:

80mm

Power Supply

Input voltage:

220v/110v ±10%

Input frequency:

50Hz/60Hz

Output power:

Halogen bulb--30VA(max),LED bulb--15VA(max)

Output voltage:

Light source Halogen bulb--6V continuous,or LED bulb--12V continuous.fixation 3V

Ambient conditions Working

Temperature:

+5°C～+40°C

Relative humidity:

≤80%

Air pressure:

800hPa~1060hPa

Storage

Temperature:

-40°C～+55°C

Relative humidity:

≤93%

Air pressure:

700hPa~1060hPa

Transportation

Temperature:

-40°C～+55°C

Relative humidity:

≤93%

Air pressure:

700hPa~1060hPa

Packaging

Carton:

740mm X 450mm X 500mm

Gross weight:

22Kg(without electrical desktop and options)

Net weight:

17Kg(without electrical desktop and options)
