Image acquisition device |
|
Image sensor: |
1/2.5 inch high-speed and high-definition sensor |
|
Still image resolution: |
2592 X1944 |
|
Photo format: |
jpeg |
|
Video resolution: |
1280X960（Full HD） 25fps |
|
1396 X960（HD） |
30fps |
|
Shooting mode : |
Manual mode,continuous mode |
|
Manual mode: |
Focusing and shooting by using the mouse wheel |
|
Continuous mode: |
Auto focusing |
|
Viewfinder: |
Computer screen |
|
Embedded intelligent OS: |
Auto-exposure,auto-gain,auto-white balance |
|
Transmission interface: |
RJ45,compatible with 100/1000M ethernet,multicast available |
|
Power supply: |
Powered by network according IEEE802.3af，48VDC |
|

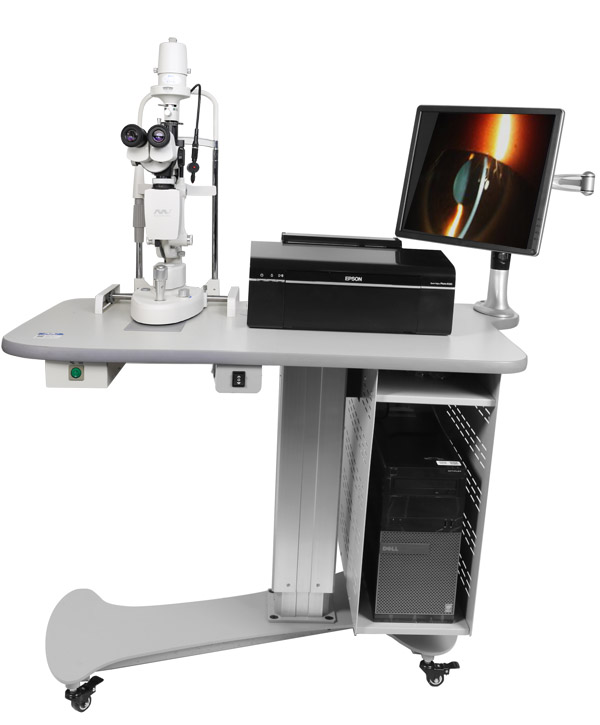

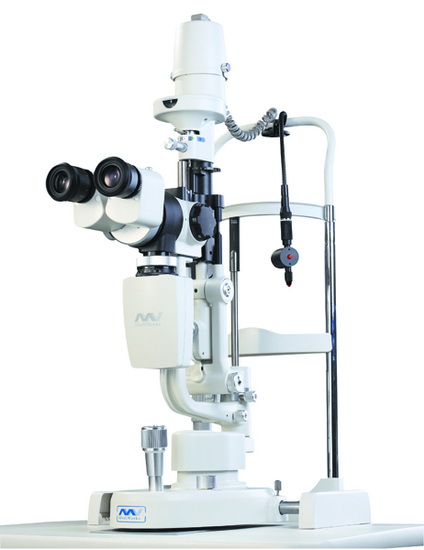

Microscope |
|
Microscope type: |
Galilean system |
|
Magnification changer: |
5 steps Revolving Drum |
|
Total magnification: |
6X,10X,16X,25X,40X |
|
Eyepieces: |
12.5X |
|
Ocular Field: |
Ø18mm |
|
Inter pupillary distance: |
52mm～78mm |
|
Diopter adjustment: |
+6D to -6D |
|
Object image field in mm: |
Ø34.7(6X ),Ø22(10X ), Ø13.5(16X),Ø8.5(25X),Ø5.5(40X ) |
|
Slit illumination |
|
Slit image width: |
0～14mm continuous |
|
Slit image length: |
1～14mm continuous |
|
Light source: |
6v/20w halogen incandescent light bulb or 12V/10W LED light bulb |
|
Slit image radial range: |
0～180° |
|
Filters: |
Heat aborption,redfree(green),cobalt blue |
|
Illumination fields Ø in mm: |
0.2/1/2/3/5/10/14/1~14mm continuous |
|
Illumination intensity: |
≥50KLX |
|
Instument base |
|
Operation: |
Single handed 3-dimensional operation of the joystick |
|
Range of adjustment: |
90mm(longitudinal),100mm(lateral),30mm(vertical),15(fine) |
|
Chin-rest |
|
Fixation: |
Red led |
|
Vertical adjustment: |
80mm |
|
Power Supply |
|
Input voltage: |
220v/110v ±10% |
|
Input frequency: |
50Hz/60Hz |
|
Output power: |
,
Halogen bulb--30VA(max),LED bulb--15VA(max) |
|
Output voltage: |
Light source Halogen bulb--6V continuous,or LED bulb--12V continuous.fixation 3V |
|
Ambient conditions Working |
|
Temperature: |
+5°C～+40°C |
|
Relative humidity: |
≤80% |
|
Air pressure: |
800hPa~1060hPa |
|
Storage |
|
Temperature: |
-40°C～+55°C |
|
Relative humidity: |
≤93% |
|
Air pressure: |
700hPa~1060hPa |
|
Transportation |
|
Temperature: |
-40°C～+55°C |
|
Relative humidity: |
≤93% |
|
Air pressure: |
700hPa~1060hPa |
|
Packaging |
|
Carton: |
740mm X 450mm X 500mm |
|
Gross weight: |
25Kg(without electrical desktop and options) |
|
Net weight: |
22Kg(without electrical desktop and options) |
