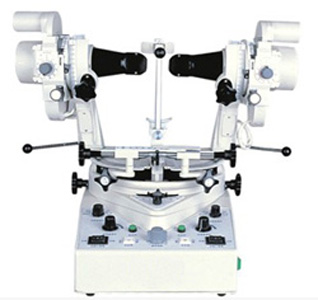

Description:
With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
Advanced semi-transparent and semi- reflecting viewfinder is convenient for the surgeon to observe.
Advanced LED luminophor has even lllumination, low heat and long service life.
Pictures designed by new technology are anti-broken and has long service life.
Manual or automatical coruscation with accurate frequency are at surgeon’s option.
Optional pictures for quantitative measuring of solid acutance （40“~1000“）
Specification:
|
Magnification |
1.65× |
|
Diameter of Field |
≥56mm |
|
Red light |
λ=640mm coruscation system |
|
Left and right tubes rotate around erect axis |
converging 50°, diverging 40° |
|
Left and right tubes rotate around horizontal axis |
±30° |
|
Pictures of left and right can be moved up and down according optical axis |
±10△ |
|
Pictures of left and right rotate around optical axis |
±20° |
|
Adjustable range of interpupillary distance: |
45~75mm |
|
Darkroom illumination |
LED bulb with symmetry design |
|
Adjustable Haidingers Brush |
50-100round/ minute |
|
Coruscation form |
manual or automatic |
| |
