Home  >  Products  >  Ophthalmic Instruments  >  Operation Microscope

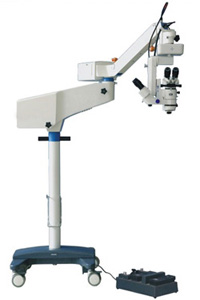

  Product Name:Operation Microscope
Product Code:SOM2000DX


CE Certificated, FDA registered

Description:

It provides an amazingly clear, fine observations by using Xenon light source.

2 °+6° coxial illumination greatly improves the intension and range of red light reflex.

UV-proof and heat absorption reduces the harm to intraocular tissues and make the patient feel more comfortable.

Germany imported Schott optics ensure the surgeons a bright, balanced and fine observation.

 Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.

Lock device under the microscope arm prevents accident from happening.

Fine focusing knob is under the bottom of assistant binocular. The obervation of the assistant’s microscope can be finely focused independently from the main microscope, to avoid the different observations from the surgeon..



Specification:

Eyepiece Magnification

12.5×/18B

Objective Lens

f=200

Working Distance

170mm

Magnification for Main Microscope

4.6×-27×, motorized and manual control,

Continuous Magnification

Magnification for Assistant Microscope

10×16×

Diameter of Field

φ46mm ~φ8.5mm

Diopter Adjustment

±7D

Pupil Distance

50mm 75mm (main microscope is 45mm 80mm)

Maximal Resolution

126LP/mm

Focusing Range for Assistant Microscope

≥30mm

Illumination Source

120V/100W Medical Xenon Lamp and 12V/100W Halogen Lamp. Dual-source hand- switched

Illumination Type

 6°+2°Coaxial illumination, 26°oblique illumination

Filter

UV-IR Filter Yellow Spot Protection FilterRedfreeGG435GG475

Coaxial Illumination

≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated

Oblique Illumination

 ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated

Reaching Radius of Arm

1230mm

Adjustable Vertical Range

925mm 1465mm

Fine Focusing Speed and Range

≤2mm/s≥45mm

Speed for X/Y and Range

≤2mm/s50mm×50mm

Input Voltage

AC220V±22V/50Hz±1Hz    AC110V±11V/60Hz±1Hz

Power

280VA

Fuse

AC250V   T4.0AAC125V  T8.0A

Electrical Safety Standard

Executive standard:GB9706.1-2007

Packing Volume

0.856m35cartons

Total Weight

230kg
